Sterilization Baskets and Trays

Made in the USA



Procedure Tray

Product No. 5058-76PT

Features:

Phelan's procedure tray helps organize your instruments.

  • Each tray is designed to minimize shelf space and maximize storage capacity while maintaining a protective environment for your instruments.

  • All trays have a unique layout to store  specific instrumentation for Ortho Back, Anterior Cervical Fusion, Neuro and Craniotomy procedures.

  • Pull-up type handles are easily lifted from the anterior ends of the tray making it possible to store this tray inside another storage container.



    Note: Other sizes and configurations available upon request.

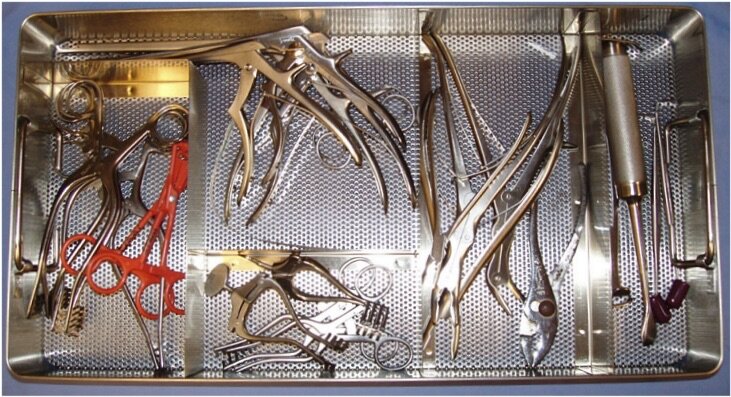

prochedure trays 1.jpg
prucdure tray 2.jpg

Specifications:
Product No. 5058-76PTOB 5058-76PTAC 5758-76PTN 5058-76PTC1

5058-76PTC2
Description Ortho Back Anterior Cervical Fusion Neuro #1 Crani #1 Crani # 2
Width 10 1/2" 10 1/2" 10 1/2" 10 1/2" 10 1/2"
Length 20" 20" 20" 16" 20"
Depth 3 1/2" 3" 3" 3 1/2" 3"
Compartments -Total Eight Seven Eight Seven Five
Instrument Racks Three Three Two Four

None
Lift-out Tray Yes Yes Yes Yes Yes
Handle Pull-up Pull-up Pull-up Pull-up

Pull-up
Material #304 Stainless Steel #304 Stainless Steel #304 Stainless Steel #304 Stainless Steel #304 Stainless Steel
Shipping Weight 16 lbs. 15 lbs. 15 lbs. 11 lbs.

12 lbs.
